INTELLECT
Intelligence for the unmanned age. Intellect AI boards enable advanced perception, autonomous decision-making, and data-driven control for UAV systems operating in complex environments.
INTELLECT
Intellect is a mission ready AI platform for drones, delivering real-time onboard intelligence in a compact, power efficient design. Built for ISR and autonomy, it integrates easily into existing UAV systems through standard interfaces.

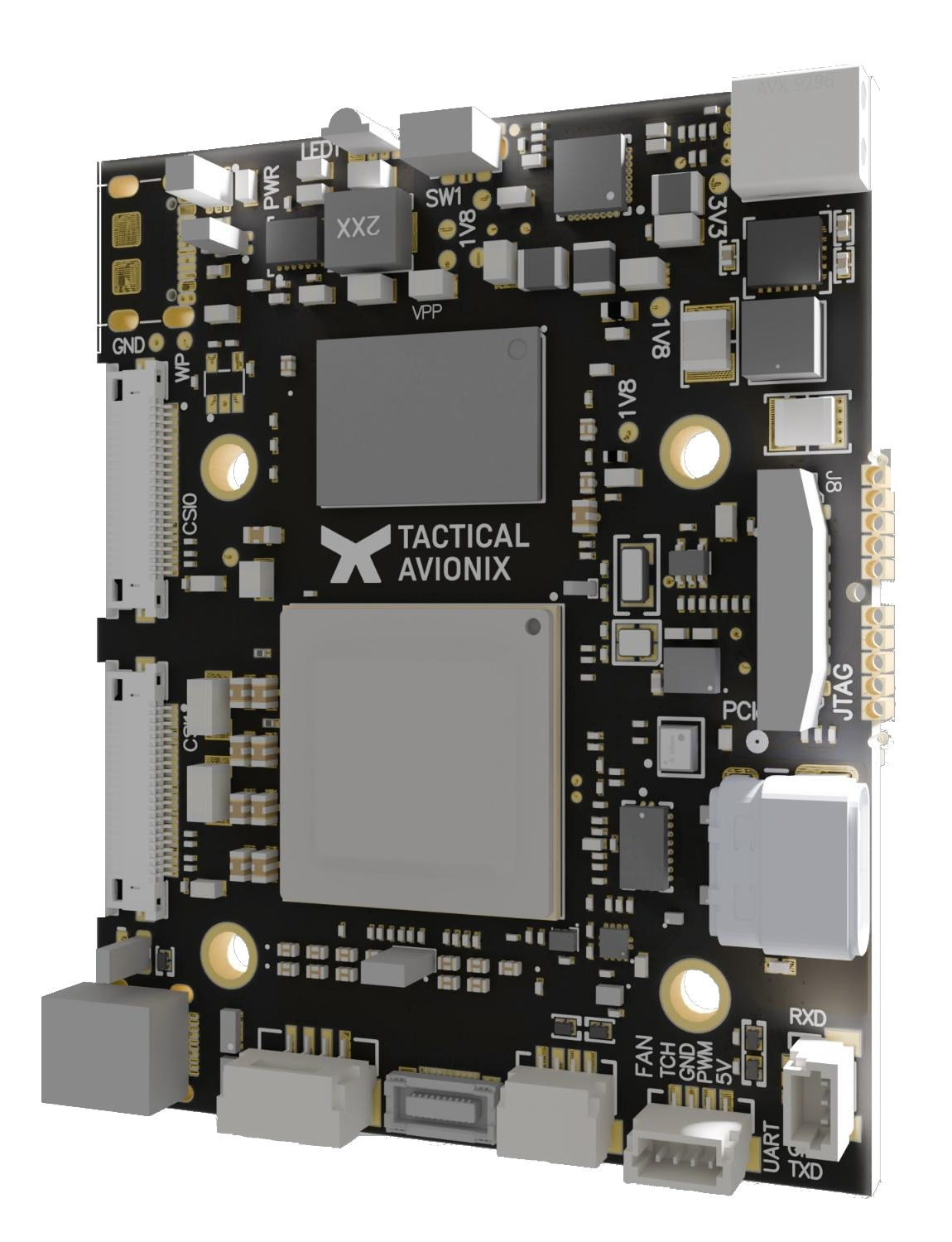

Single board solution with SoC & AI accelerator
Multi-camera support (thermal & visible) via MIPI CSI
Micro-HDMI output with realtime target information overlay
i2c, GPIO, 2x UART, 1x CAN for flight controller connection
USB Type-C Gen1 Host, SDIO, PCie Gen3 x1
Input: 2S-8S, onboard 6DoF IMU, barometer
Real-time inference for simultaneous multipe object detection, navigation without GNSS, and object tracking.
Multiple-camera pipeline: thermal,NIR and daylight for robust situational awareness.
Designed for standard drone interfaces and easy integration into existing UAV architectures.
Compact form factor for UAV and robotics applications.
Direct flight controller connection via 2x UART and CAN for telemetry/control integration.
Hardware-backed secure boot with signed firmware, optional encrypted images, anti-rollback protection, and secure debug/JTAG lockdown.
Edge-AI compute module for drones and robotics, delivering real-time onboard perception and autonomy with efficient processing for vision and sensor workloads, plus high-speed connectivity for cameras, networking, expansion modules, and real-time control interfaces designed for reliable deployment with hardware-backed firmware integrity and optional protection features.
ARM based CPU with integrated AI accelerator
High-speed LPDDR4 4Gb
Micro-SD card support
CAN, UART, i2c, GPIO, USB-C, SDIO
−20°C to +65°C
2S-8S input
Depending on your necessities, we can guarantee you that you will outperform in any situation.
Intellect processes environmental data to navigate dynamically changing environments.
Perceives and classifies objects in real time for surveillance or mapping.
Detects structural anomalies and highlights points of interest for rapid review.
Stores mission telemetry and vision events for debrief and performance monitoring.
Enhances situational awareness in GPS-denied or low-visibility conditions.
Our cutting-edge drone boards are engineered to elevate your UAV's performance to new heights. With advanced features and robust design, our boards provide the reliability and efficiency needed for demanding applications.
